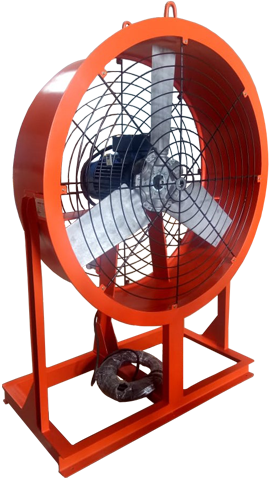

HBB 48

The HOPELMAR bug blowers are rugged fans designed for maximum air flow, low decibel noise levels, durability and safety with more advantage such :

Standard motor is dual rated for 380/440 VAC and 50/60 Hz. Other motors are available for your custom application.

A lifting lug is included at the top of the housing to facilitate handling. Forklift pockets can be added to the heavy duty skid base for another option of easy handling.

Safe operation and efficient performance.

Ensure safe operation in any environtment.

Makes handling safe and easy.

We also accept and make the orders of bug blower according to customer specifications and desires.

Explosion Proof Elcetric Motor UL Certification
Switch Starter on/of ATEX Certification
Cable Giant ATEX Certification
Impeller - Aluminium ATEX Certification
Impeller - Pagas ATEX Certification
Hub - Aluminium ATEX Certification
Cable IEC Certification
Download Brocure.pdf
Material Impeller Aluminium
Material Hub Aluminium
Material Housing Mild Steel
Tech Specification Nishishiba, Japan
- Adjustable
- Motor Starter on/off
- Cable Giant
- Electro Motor Standing
- Balancing Impeller
- Inlet / Outlet Grill
- Standing
- Lifting Eye on Frame
- Heavy-gauge front and back
Download Brocure.pdf
Type Direct Drive
Impeller Size 48"
Electric Motor (Ex) 5 HP
Speed (Rpm) 1450
Air Flow Capacity (Cfm) 34900
Voltage (V) 380/440
Cycle (Hz) 50
Phase 3
Overall Height (mm) 1830
Overall Width (mm) 1300
Overall Depth (mm) 750
Approximate Weight (kg) 225
Download Brocure.pdf Download Manual Book Download Data Sheet
