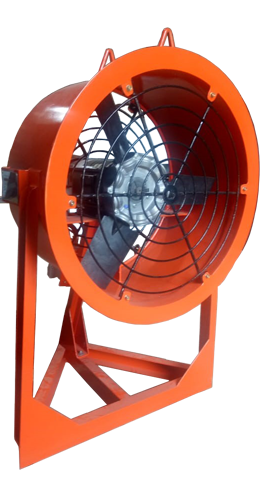

The HOPELMAR bug blowers are rugged fans designed for maximum air flow, low decibel noise levels, durability and safety with more advantage such :
• Standard motor is dual rated for 380/440 VAC and 50/60 Hz. Other motors are available for your custom application.
• A lifting lug is included at the top of the housing to facilitate handling. Forklift pockets can be added to the heavy duty skid base for another option of easy handling.
• Safe operation and efficient performance.
• Ensure safe operation in any environtment.
• Makes handling safe and easy.
We also accept and make the orders of bug blower according to customer specifications and desires.
| Explosion Proof Elcetric Motor | UL Certification |
| Switch Starter on/of | ATEX Certification |
| Cable Giant | ATEX Certification |
| Impeller - Aluminium | ATEX Certification |
| Impeller - Pagas | ATEX Certification |
| Hub - Aluminium | ATEX Certification |
| Cable | IEC Certification |
| Material Impeller | Pagas |
| Material Hub | Aluminium |
| Material Housing | Mild Steel |
| Tech Specification | Nishishiba, Japan |
| - Adjustable | |
| - Motor Starter on/off | |
| - Cable Giant | |
| - Electro Motor Standing | |
| - Balancing Impeller | |
| - Inlet / Outlet Grill | |
| - Standing | |
| - Lifting Eye on Frame | |
| - Heavy-gauge front and back |
| Type | Direct Drive |
| Impeller Size | 24" |
| Electric Motor (Ex) | 2 HP |
| Speed (Rpm) | 1450 |
| Air Flow Capacity (Cfm) | 10300 |
| Voltage (V) | 380/440 |
| Cycle (Hz) | 50 |
| Phase | 3 |
| Overall Height (mm) | 940 |
| Overall Width (mm) | 750 |
| Overall Depth (mm) | 640 |
| Approximate Weight (kg) | 150 |
